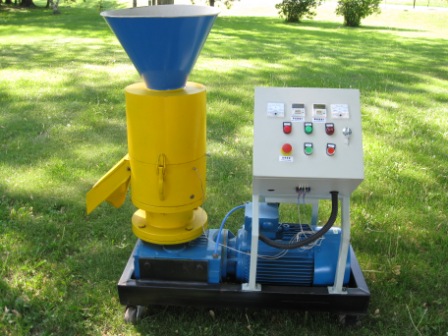

PELLETMASTERS MODEL #TT 200
20 hp Electric Pellet Mill
  • Power:  220 volt 3 phase
  • 12" Die Plate/ Rotating Roller Carriage
  • Dimensions: 48"L x 40"W x 48"H
  • Weight:  1050 lbs
  • Output:  330- 550 lbs/hr

*SALE PRICE= $7,990   (Reg. $12,250)
PELLETMASTERS (TigerTec) #TT75
7-1/2 hp Electric Pellet Mill
  • Power:  220 volt 3 phase
  • 8" Die Plate/ Stationary Roller Carriage
  • Dimensions: 40"L x 24"W x 36"H
  • Weight:  590 lbs
  • Output:  110- 220 lbs/hr
  *SALE PRICE= $3,990 (Reg. $5,950)

PelletMasters (TigerTec) #TT Series
Small & Medium Flat Plate Die Pellet Mills
TT/PelletMasters “TT" Series Pellet Mills have a superior Flat Plate Die Design that enables use with a wide variety of biomass products including:  wood*, corn stalks, grasses, straw, manure, leaves, paper,  forestry wastes, etc. and are able to make quality pellets for fuel, feed, or fertilizer applications.
• These high torque machines can make premium quality wood pellets in most applications without the use of binders!
• Superior roller/die geometry and general mill design make these machines very energy efficient too
Other Features Include:
• High Tensile Rollers & Die Plate-Available in 6 and 8mm dia in varying compression ratios *Rollers & Main Shaft have Heavy Duty Tapered Roller Bearings that are easily maintained with grease zerks that are readily accessible to extend bearing and machine life.
• Multiple Reduction Right Angle Helical Beveled GearBox is Built Strong to Last Long
• High Qulaity Mill Head Casings and Electrical Components are Superior to Most Imports
• Larger Models have Rotating Roller Carriage which Minimizes Product Bridging plus sensors for automatic shut down for high pelletizing chamber & gearbox temperatures
PELLETMASTERS
(Formerly Tiger Tec)
Small & Medium Size Pellet Mills
Featured in January 2009 Farm Show Magazine

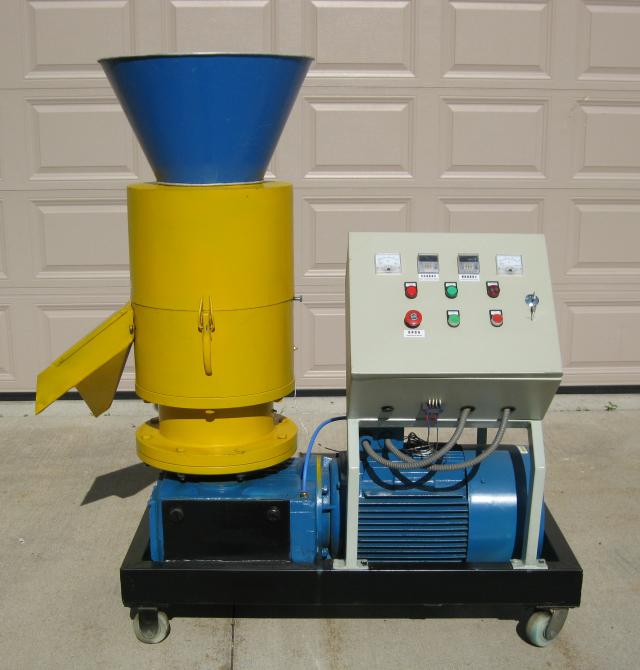

PELLETMASTERS MODEL #TT 300
30 hp Electric Pellet Mill

  • Power:  220 volt 3 phase
  • 16" Die Plate/ Rotating Roller Carriage
  • Dimensions: 48"L x 40"W x 48"H
  • Weight:  1600 lbs
  • Output:  550- 770 lbs/hr

*SALE PRICE= $10,490   (Reg. $17,525)
*PelletMasters Sale - We will match competitors prices on identical models!
*Special Pricing Applies to Stock Items Only - matching price would include matching shipping & warranty terms.  These terms may not be as good as our terms on items sold at our standard selling price.  Items with matched prices would not include any upgrades we normally do to equipment upon arrival that we have found helpful in pellet processing.  **Prices below include upgrades and superior warranty.
*NEW PRICES EVEN LOWER + PRICE MATCHING POLICY!*
** We also carry the complete line of PelletMasters TTG series"green" pellet mills & hammermills.  We have hands on experience on several models and offer unprecedented phone support and service after the sale.

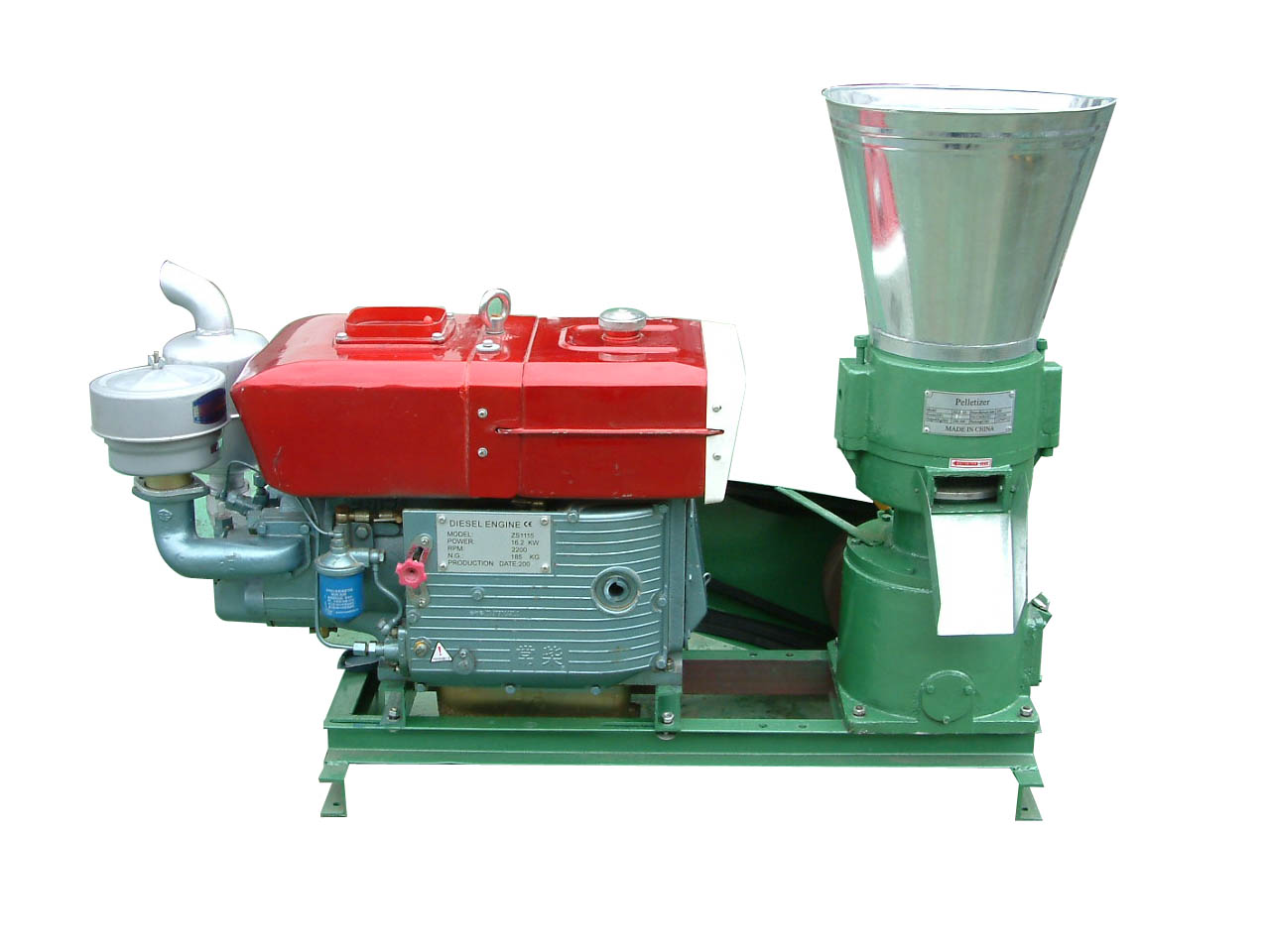

  Green Diesel Powered Pellet Mills
Die                    Power                       Price

8"              15 hp Electric Start                 $3990

9"              22 hp Electric Start                 $4290

10"            30 hp Electric Start                 $6585

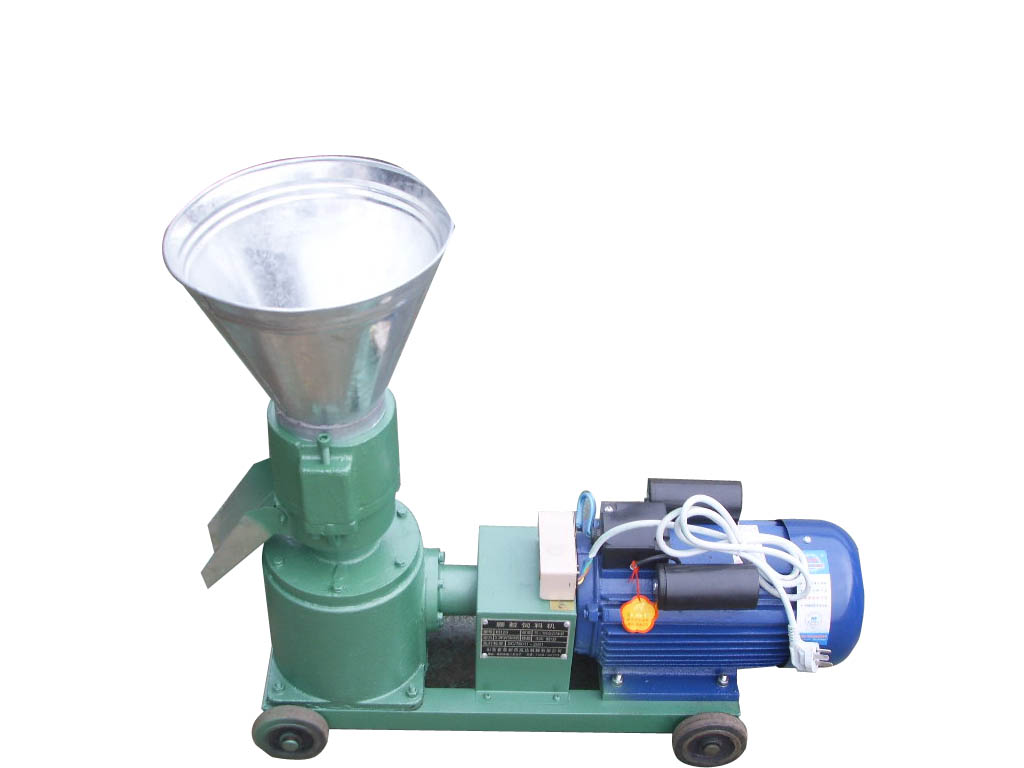

Green Electric Powered Pellet Mills
Die                   Power                       Price
  5"             4 hp 220V 1 phase             $1585
  6"             5 hp 220V 1 phase             $2495
  8"           10 hp 220V 1 phase             $3995

  8"           10 hp 220V 3 phase             $2750

PelletMasters "TTG" Series Pellet Mills & Hammermills*         *(for processing FEED & similar soft materials only)

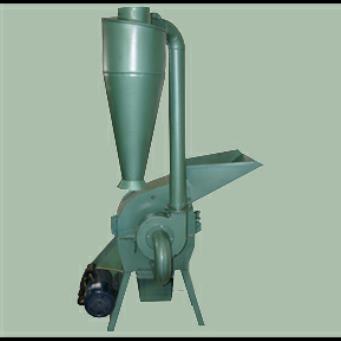

4 HP Green Electric Powered Hammer Mill
  4hp 220 volts 60 Hz single phase motor.  There is a small blower integral with the hammer mill, but no cyclone. Several screens are included.    Price :  $ 1695 *
*(Cyclone attachment shown available for additional $165)

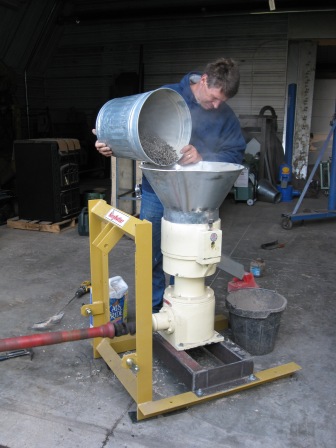

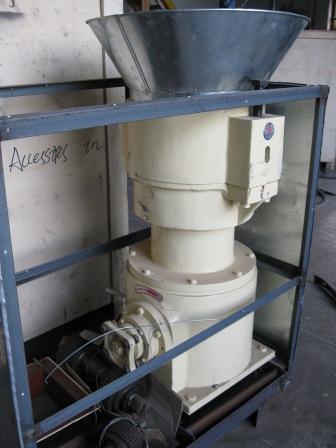

PELLETMASTERS (TigerTec) #TTC 2250
MILL HEAD ONLY

This mill head only is ready to be adapted to your own power source (recommend 28 hp).   Heavy duty construction mill head has a 10" flat plate die with fixed axle type rollers.
Making 50lb/cu ft Hardwood/Paper Pellets
**Sorry- We are no longer stocking this item.

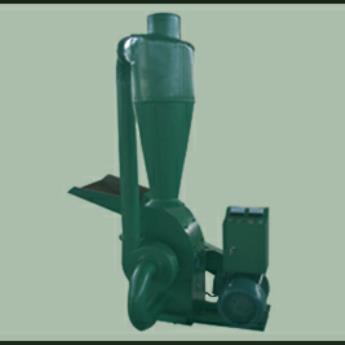

Green 3 Phase Electric Powered Hammer Mills
15 hp 220 volts 3 phase electric motor        $3295

30 hp 220 volts 3 phase electric motor        $5995
3 HP Green Electric Powered Hammer Mill
  3hp 220 volts 60 Hz single phase motor.  There is a small blower integral with the hammer mill, but no cyclone. Several screens are included.    Price :  $ 1395
Gas Powered Green Hammer Mills

Power                             Price
  6.5 hp                           $1695*

Note: Some competitors may sell their engine as 7.5 hp.  Our engine is a clone of a Honda SX200 which Honda rates at 6.5 hp.

*Note: Cyclone attachment shown available for an additional $165
Green Non-Powered Shaft Drive Pellet Mills
Die Size       Power                        Price
    5"                Shaft                               $1285
    6"                Shaft                               $1285
    8"                Shaft                               $2265
   10"               Shaft                               $2965

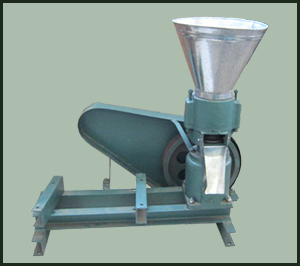

Green Non-Powered Pulley Drive Pellet Mills
Die Size             Power                     Price
    5"                        Pulley                         $1285
    6"                        Pulley                         $1285
    8"                        Pulley                         $2265
    9"                        Pulley                         $2785

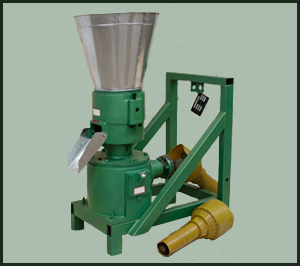

Green Tractor (PTO) Powered Pellet Mills
Die Size   Recommended Power      Price
    8"                        15 hp                          $2275
    9"                        22 hp                          $2390
  10"                        30  hp                         $2975
PELLETMASTERS Red 3 Phase
Electric Pellet Mills

NEW MODEL- Works great for making wood pellets!

Model #WDR225   10 hp 220volt 3 phase  $3990

*More sizes & options coming soon!
*Production Rates on all pellet mills vary widely with different material content, particle size, moisture content and feed rate.
*The BLUE & YELLOW mills are one of our best small mills for making wood pellets- this top quality mill runs at a speed  designed specifically for producing quality wood pellets.  Ask us about a rotary phase converter for use with single phase current. here to add text.
PELLETMASTERS BLUE & YELLOW
MODEL #TTD150
15 hp Diesel Pellet Mill- Electric Start

  • Power:  15 hp Diesel Engine
  • Electric Start
  • 8" Die Plate

*SALE PRICE= $5,895

Larger Sizes Available on Request (30 & 40hp)

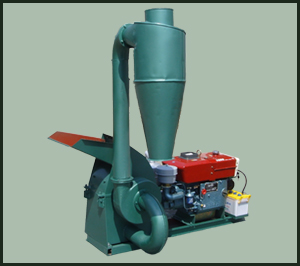

Diesel Powered Green Hammer Mills

Power                                               Price
  22 hp Electric Start                        $3995


PelletMasters Green Hammermills - For Feed Products
Blue Tractor Powered Pellet Mills (PTO Drive)
*Can be used to make wood pellets!

Die Size   Recommended Power      Price
    8"                        15 hp                          $2490
   10"                       22 hp                          $2990
   12"                       30 hp                          $3690
   14"                       45 hp                          $5795
